Epson Waste Ink Counter Reset Without a Key: L3106 Case and Model Checks

🇰🇷 한국어 안내: 한국어 가이드 및 국내 호환 부품 구매 안내는 엡손 잉크패드 리셋: L3106 작업 사례와 모델별 주의 (한국어) 포스팅을 참고하세요.

Manufacturer cross-check (15 Nov 2026): The reinkpy-fix repository describes a tool for some Epson printers, with confirmed operation on the L3060 series and similar devices. It does not verify all 33 variants previously listed here. The L3106 sequence below is the author’s original account. Epson’s official ink-pad explanation states that physical waste pads contain ink from cleaning and printing and may require maintenance or replacement. A software counter reset cannot replace servicing the physical ink pads. Some models do not have user-replaceable waste pads; consult the exact model’s service guidance.

Exact Epson Waste Ink Pad Error Messages & Symptoms

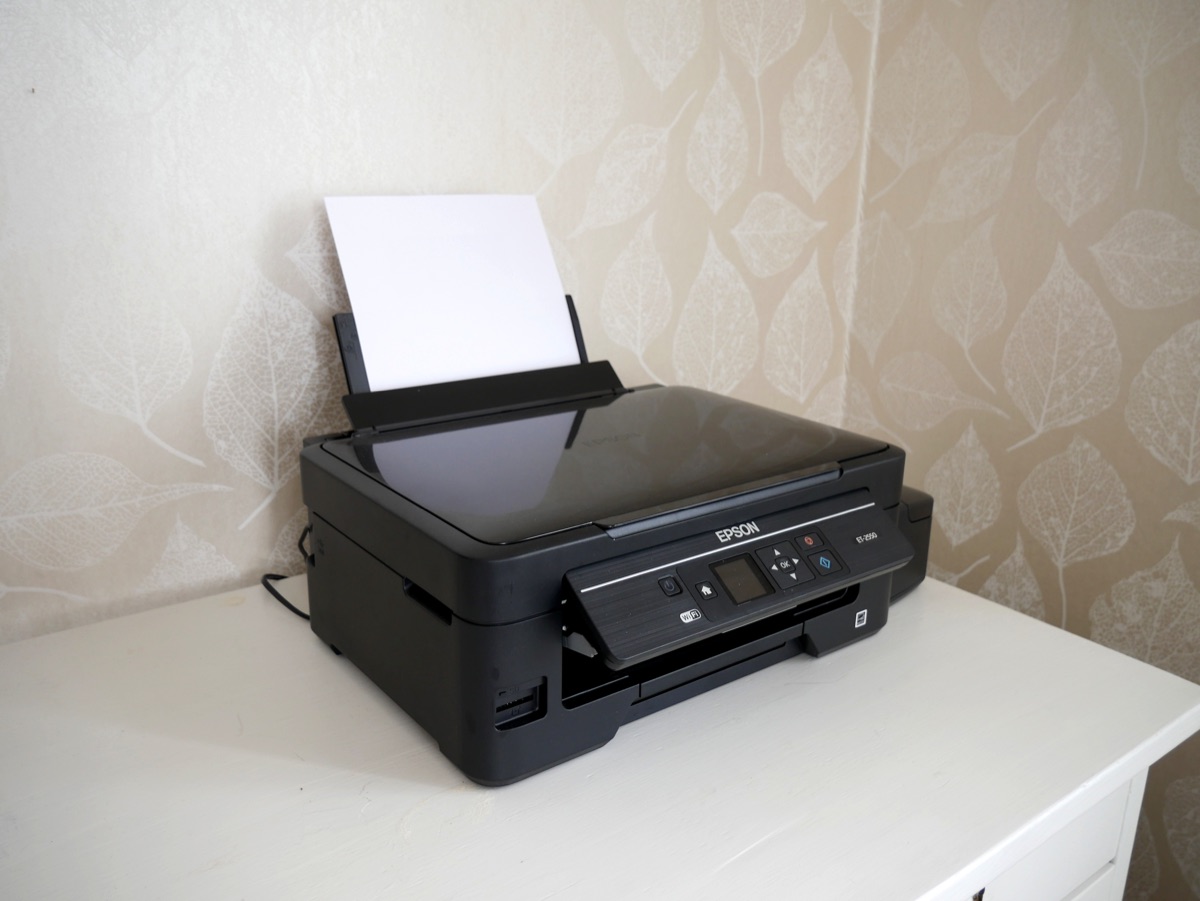

Epson EcoTank Inkjet Printer

Epson EcoTank Printer (Photo: Santeri Viinamäki, CC BY-SA 4.0 via Wikimedia Commons)

If you own an Epson EcoTank / L-Series printer (such as the L3100~L3168, L1110, L5190, ET-2710, ET-4700), after printing a certain threshold of pages, printing will suddenly halt with the Power light and Ink/Paper warning lights flashing alternately.

Depending on your driver version and OS, EPSON Status Monitor 3 will throw one of these exact verbatim warning messages:

Message 1 (Final Service Lockout - Most Common):
“A printer’s ink pad is at the end of its service life. Please contact Epson Support.”
(Or: “The printer’s ink pads are at the end of their service life.”)

Message 2 (Pre-lockout Warning):
“A printer’s ink pad is nearing the end of its service life. Please contact Epson Support.”

Message 3 (Status Code on LCD / Utility):
Error Code: E-11 (Ink pad life expired / Service required)

If you found this page after receiving an ink-pad service alert, the steps below document one reported approach. Your model may require professional service, and resetting a counter cannot replace saturated ink pads.

When searching for solutions online, users typically hit two frustrating roadblocks:

  1. Software and platform limits: Commercial reset utilities may charge for a key. Some free alternatives are Windows .exe files, which may be difficult to run directly on macOS or Linux. Check vendor documentation and the exact model before selecting software.
  2. Model-specific parts and cost: Some cases allow replacing an absorber without discarding the housing, but other designs have non-user-replaceable pads or different service requirements. Verify model compatibility before buying parts or opening the printer.

In the documented case, felt-pad work and an open-source counter-reset attempt were used. The reported cost was about $4–$5 and the process took roughly 10 minutes for that case. Neither the timing nor compatibility is established for other models.


1. Cost & Waste Comparison: Full Assembly vs. Felt Pads Only

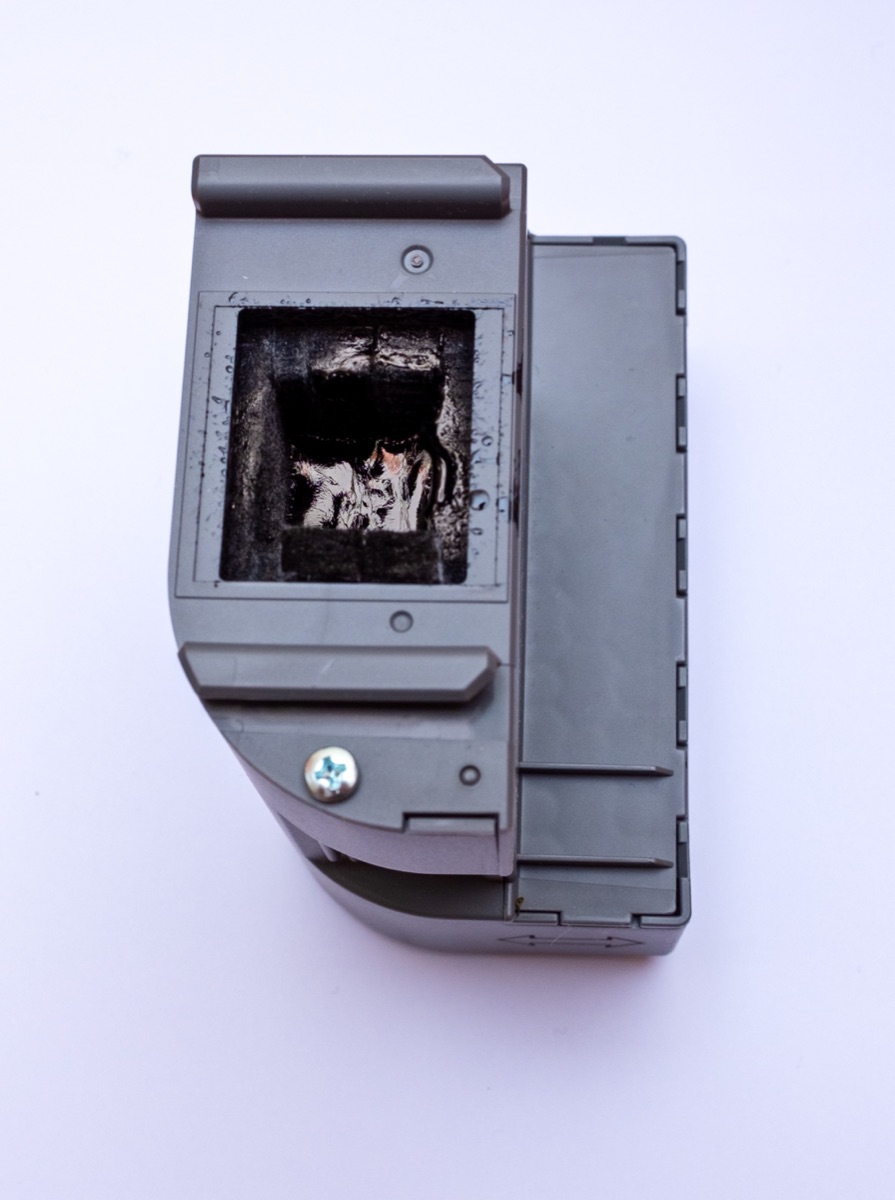

Epson Ink Maintenance Box with waste ink

Epson Ink Maintenance Box / Waste ink absorber (Photo: Ll1324, CC0 Public Domain via Wikimedia Commons)

A maintenance box or waste ink pad assembly can differ by printer model. Felt pads collect discarded ink, and the owner should not assume every casing is reusable or every ink pad is a user-serviceable part.

Aspect Full Maintenance Box Assembly Felt Absorber Pads Only (model-dependent)
Typical Cost $7 – $10 + shipping $4 – $5 (Free shipping available online)
Hardware Work Remove 1 screw, swap box Remove 1 screw, swap inner felt pads
Time in the example ~3 minutes ~5 minutes
Eco Impact Throws away durable plastic Reuses plastic housing, zero extra plastic waste

Replacement pads and access procedures differ by model. Verify whether the service is intended for users before purchasing parts or opening the printer. The costs shown above are historical examples, not current prices.


2. Hardware Replacement (L3106 Historical Case)

The disassembly sequence below records the author’s L3106 case, not a validated procedure for other Epson models. Do not assume the same screws or waste-pad assembly are present. Follow model-specific service instructions; leave parts designated non-user-replaceable to authorized service providers.

Items needed: Cross-head screwdriver, disposable gloves (or tweezers), paper towels, new felt pads.

  1. Power Off: Disconnect the power cord and USB cable.
  2. Remove Outer Screw: Locate the single screw on the lower right back panel of the printer. Unscrew it and slide the small plastic cover downwards to remove it.
  3. Slide Out Ink Box: Remove the inner screw securing the waste ink container. Slide the container out gently towards the right.
  4. Swap Sponges: Wearing gloves, pull out the ink-soaked sponges and discard them into a trash bag. Wipe the inside of the plastic casing with a paper towel, then insert the new, clean felt pads in the exact same orientation.
  5. Reassemble: Slide the box back into the printer, tighten both screws, and reattach the cover.

3. Software Counter Reset via reinkpy-fix (Cross-Platform)

Physical waste pads collect real discarded ink, while software counters provide service information. Resetting a counter does not inspect, empty, replace, or establish the safety of the pads. Even after appropriate physical servicing, any counter adjustment depends on the printer’s exact model and supported service procedure. See Epson’s ink-pad service explanation.

The documented case referenced reinkpy-fix. Its README reports operation for the L3060 series and similar devices, with fixes focused on LAN/SNMP. The USB procedure below is a historical L3106 case description, not independent proof that the same commands work for another model.

The AI coding assistant prompt below is intended for reviewing setup and model support. It instructs the assistant to stop before writing to the printer and ask for separate confirmation after checking physical pad servicing and compatibility.


💡 Ready-to-use AI Agent Prompt (Copy & Paste)

Confirm the exact printer model and physical pad service requirements before using this prompt. It asks the coding assistant to stop for confirmation before resetting anything. Other models cannot be assumed compatible just by changing a model name:

My Epson printer (model: L3106 / L3100 or ET-2710 series) is locked due to "waste ink pad at the end of its service life".
It is connected via USB to my macOS/Linux machine. Review the following steps, but do not send any reset command to the printer until the exact model's support and physical waste-pad servicing have been confirmed. Explain the findings and ask for my separate approval before any counter write:

1. Clone repository: https://github.com/LeFZdev/reinkpy-fix
2. Ensure libusb is installed (e.g. run 'brew install libusb' on macOS or 'apt-get install libusb-1.0-0-dev' on Linux).
3. Set up a virtualenv (python3 -m venv venv) and install dependencies:
   venv/bin/pip install pyusb pysnmp zeroconf
   venv/bin/pip install -e .
4. (CRITICAL BUG FIX) In reinkpy/__init__.py, find two occurrences of 'from usb import UsbIO' and replace them with 'from .usbtest import UsbIO'.
5. Replace reinkpy/main.py with this reset routine:
```python
import reinkpy
printer = reinkpy.Device.from_usb(manufacturer='EPSON')
driver = printer.epson
if not driver.spec.model:
    driver.configure("L3106")  # adjust to your model e.g. L3150, ET-2710
print("Connected Printer:", printer)
print("Configured Model:", driver.spec.model)
driver.reset_waste()
print("Waste ink pad counter successfully reset to 0%!")
```
6. Do not run sudo venv/bin/python3 reinkpy/main.py yet. Wait until model support and physical pad service are confirmed and I authorize the counter write separately.

🛠 Step-by-Step Manual Terminal Guide

If you prefer executing the commands manually without an AI assistant:

Step 1 — Clone the Repository

Clone the patched repository locally:

git clone https://github.com/LeFZdev/reinkpy-fix
cd reinkpy-fix

Step 2 — Install libusb

libusb is required for raw USB device communication on macOS and Linux.

On macOS (via Homebrew):

brew install libusb

On Ubuntu/Debian Linux:

sudo apt-get install libusb-1.0-0-dev

Step 3 — Create Virtual Environment & Install Dependencies

python3 -m venv venv
venv/bin/pip install pyusb pysnmp zeroconf
venv/bin/pip install -e .

Step 4 — Fix Library Import Bug (Crucial Step!)

In the current reinkpy-fix repository commit, running the script immediately results in an ImportError. The underlying file usb.py was renamed to usbtest.py, but reinkpy/__init__.py was not updated.

Open reinkpy/__init__.py and search for from usb import UsbIO. You will find two occurrences. Change both lines to:

# Before
from usb import UsbIO

# After
from .usbtest import UsbIO

(If you are using an AI coding agent, simply tell it: “Fix the UsbIO import in reinkpy/init.py to import from .usbtest”, and it will patch the file instantly.)

Step 5 — Replace main.py with USB Reset Routine

The sample below calls driver.reset_waste(), which attempts to write to the printer counter when run. Before using it, confirm that reinkpy-fix supports your exact model and the physical waste pads have been serviced. L3106 is the documented case; replacing its model name does not establish compatibility.

The following is the L3106 example for reinkpy/main.py. Do not execute it until those checks are complete:

import reinkpy

# Discover connected EPSON USB printer
printer = reinkpy.Device.from_usb(manufacturer='EPSON')

driver = printer.epson
if not driver.spec.model:
    driver.configure("L3106")  # Documented L3106 case; verify other models separately

print("Connected Printer:", printer)
print("Configured Model:", driver.spec.model)

# Reset waste ink counter to 0%
driver.reset_waste()
print("Waste ink pad counter successfully reset to 0%!")

Step 6 — Execute with Elevated Privileges

Before running: This command executes driver.reset_waste() and attempts a counter write on the connected printer. Do not run it unless the exact model support and physical waste-pad servicing have been confirmed.

The documented command uses elevated privileges for raw USB access:

sudo venv/bin/python3 reinkpy/main.py

A printed success message alone does not prove the printer counter changed or that physical service was completed. The sample script may print the following text, but the output must not be used as an independent hardware verification:

Connected Printer: <Device EPSON ...>
Configured Model: L3106
Waste ink pad counter successfully reset to 0%!

If the waste ink counter action appears successful but the alert remains, avoid repeating writes and check the service procedure for the exact printer. A software result alone does not establish that the physical pad has been serviced.


Epson model names to check individually (not a verified compatibility list)

The following printer names are a reference list from the earlier version of this guide. They are not a verified list of models supported by reinkpy-fix. The public fork describes confirmed work on the L3060 series and similar printers; it does not establish all the variants below.

1) Asian / domestic L-series examples (verify each model)

2) North American & European Models (EcoTank / ET Series)

EcoTank model names or similarities do not verify identical EEPROM layouts, firmware behavior, or counter-reset support. Check the model-specific information before attempting any writes.

Configuration warning: Replacing driver.configure("L3106") with another model name in main.py does not prove the driver will target the correct memory register. Do not attempt the write before verifying that the tool actually supports that model.


Important: Physical Disassembly Nuances by Model

Identical counter-reset behavior has not been established across these models. Physical teardown steps can also vary, and the relevant service documentation takes precedence:


Summary: Cost and time reported for this case


Frequently Asked Questions (FAQ)

Q1. Can I wash and reuse the old waste ink felt pads with water?

Not recommended. Washing saturated pads can release waste ink. Check model-specific service instructions first, because some absorbers are not user-replaceable parts. The historical $5 absorber cost in this article is not a current quote or proof that DIY replacement is appropriate for another Epson model.

Q2. The red ink and paper lights are still alternately flashing after running the reset script.

Do not run the reset again simply because the warning remains. Verify the exact model, follow Epson pad-service instructions and contact authorized support if necessary. The example output text is produced by the script; it is not independent proof that the printer EEPROM changed or the physical waste pads are safe.

Q3. What is the technical difference between paid WIC Reset keys and open-source reinkpy-fix?

The public reinkpy-fix fork documents confirmed use for L3060-series and similar devices, not all Epson models. No source reviewed establishes protocol parity with WIC Reset across the models in this article. Check the repository and Epson’s ink-pad servicing guidance before attempting a counter write.
